Detailed product overview

This page provides a detailed overview of the data products (the type, the storage and the access) of SACS and who is responsible for what. Acronyms are explained on this page.

The main subjects are:

General notes:
  • Maps are made for a set of pre-defined regions and for the whole world; in case of an alert dedicated maps are made. Most maps are images in GIF format (some maps are in PNG format).

  • For the alerts, anyone can subscribe and choose one or more of four regions of interest: Europe & Africa, Asia & Australia, North & South America, North & South Pacific.

  • The overview below gives for each data set the point of access of the maps and of the data files in two ways:
    • 'web' -- a clickable URL of the main web page with maps; from there one has to use the menus to find the map and/or data file.
    • 'direct' -- a direct URL to a data file or map image.



SO2 and AAI data derived from SCIAMACHY

archive service of SO2
data products : VCD, CCF
data format : a) daily data = ASCII at orbit coordinates (orbits zipped per day)
b) daily data = HDF-4 at 0.25 by 0.25 degree lat-long grid
c) monthly average = HDF-4 at 0.25 by 0.25 degree lat-long grid
data generation : BIRA-IASB
data analysis : BIRA-IASB
data storage : BIRA-IASB
data access - web : a) http://sacs.aeronomie.be/archive
b) http://sacs.aeronomie.be/archive/month
- direct : a)   ex:  http://sacs.aeronomie.be/nrt/SciaNrt/2010/05.orb/06/scia_20100506.zip
b)   ex:  http://sacs.aeronomie.be/archive/SciaOfl/2010/05.hdf/06/scia_20100506.hdf
c)   ex:  http://sacs.aeronomie.be/archive/SciaOfl/2010/05.hdf/month/scia_201005.hdf
data maps : VCD, CCF
map generation : BIRA-IASB
map storage : BIRA-IASB
map access - web : a) http://sacs.aeronomie.be/archive
b) http://sacs.aeronomie.be/archive/month
- direct : a)   ex:  scia_vcd20100506_106_lr.gif     scia_ccf20100901_000_lr.gif
b)   ex:  scia_20100506_106_lr.gif
time coverage : Jan 2004 - Apr 2012

notification of SO2 events
mode of alerts : email, with link to dedicated web page
alert levels : low (VCD > 1.5 DU)
alert generation : BIRA-IASB
alert archive : http://sacs.aeronomie.be/alert/
time coverage : Jan 2004 - Apr 2012

archive service of AAI
data products : AAI
data format : ASCII at orbit coordinates (orbits tar.gz per day)
data generation : KNMI (TEMIS)
data analysis : KNMI (TEMIS)
data storage : KNMI (TEMIS)
data access : a) http://sacs.aeronomie.be/archive
b) http://www.temis.nl/airpollution/absaai/#SCIAMACHY_AAI
data maps : AAI
map generation : KNMI (TEMIS)
map storage : KNMI (TEMIS)
map access - web : a) http://sacs.aeronomie.be/archive
b) http://www.temis.nl/airpollution/absaai/#SCIAMACHY_AAI

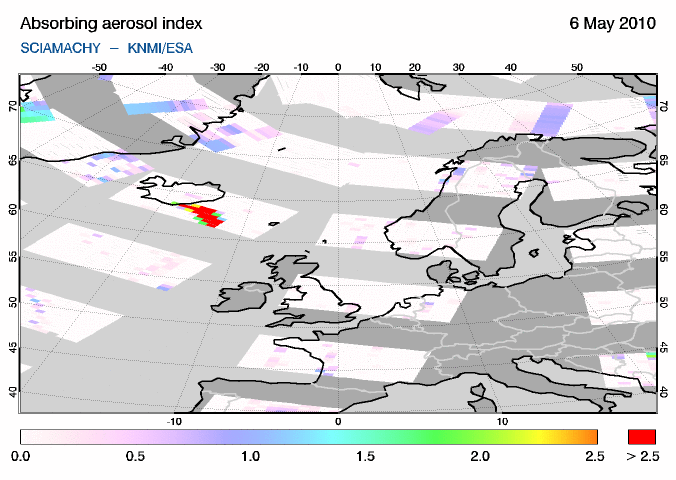

- direct : a)   ex:  scia_aai20100506_106_lr.gif
time coverage : Jan 2009 - Apr 2012



SO2 and AAI data derived from GOME-2


archive service of SO2
data products : VCD, CCF
data format : HDF-5 at orbit coordinates per PDU
      data generation : DLR
data analysis : DLR / BIRA-IASB
data storage : DLR / BIRA-IASB
data access - web : http://sacs.aeronomie.be/archive
- direct :   ex:  http://sacs.aeronomie.be/archive/Gome2Ofl/ZIPfiles/gome2_20100506.zip
data maps : VCD, CCF
map generation : BIRA-IASB
map storage : BIRA-IASB
map access - web : a) http://sacs.aeronomie.be/archive
- direct : a)   ex:  gome2_vcd20100506_106_lr.gif     gome2_ccf20100506_106_lr.gif
time coverage : Jan 2007 - Oct 2017

notification of SO2 events
mode of alerts : email, with link to dedicated web page
alert levels : low (VCD > 1.5 DU)
alert generation : BIRA-IASB
alert archive : http://sacs.aeronomie.be/alert/
time coverage : --

archive service of AAI
data products : AAI
data format : ASCII at orbit coordinates (orbits tar.gz per day)
data generation : KNMI (TEMIS)
data analysis : KNMI (TEMIS)
data storage : KNMI (TEMIS)
data access : a) http://sacs.aeronomie.be/archive
b) http://www.temis.nl/airpollution/absaai/#GOME2_AAI
data maps : AAI
map generation : KNMI (TEMIS)
map storage : KNMI (TEMIS)
map access - web : a) http://sacs.aeronomie.be/archive
b) http://www.temis.nl/airpollution/absaai/#GOME2_AAI

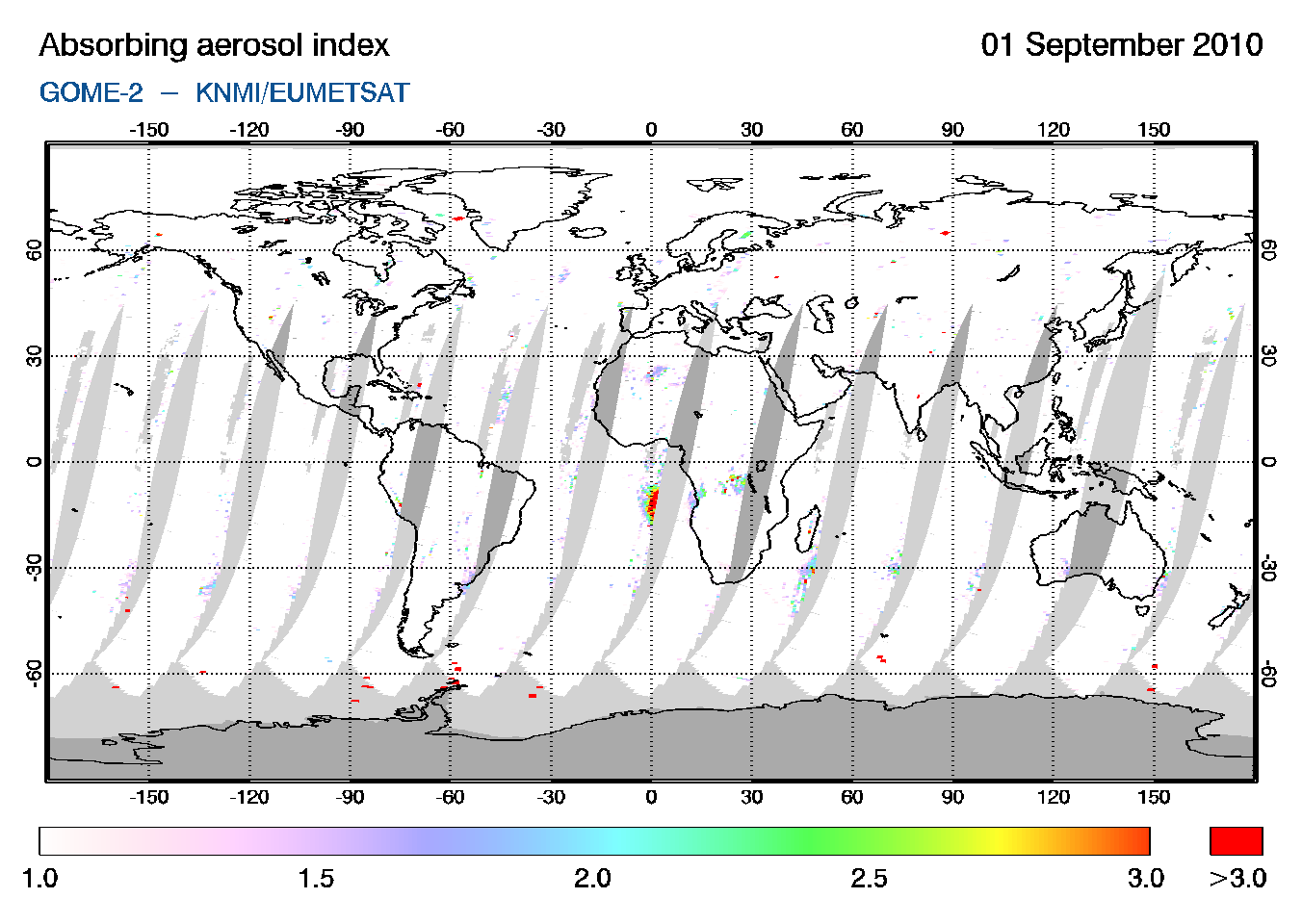

- direct : a)   ex:  SACS_GOME_NAR_02_M02_20100901000000Z.AAI_000.gif
time coverage : Jun 2010 - Oct 2017



SO2 and AI data derived from OMI


archive service of SO2
data products : VCD
data format : HDF-EOS at orbit coordinates
      data generation : NASA / UMBC / NOAA
data analysis : KNMI / BIRA-IASB
data storage : KNMI
data access : NRT data is available using the following registration: EOSDIS User Registration System.
data maps : VCD, CCF
map generation : KNMI
map storage : KNMI
map access - web : a) http://sacs.aeronomie.be/archive

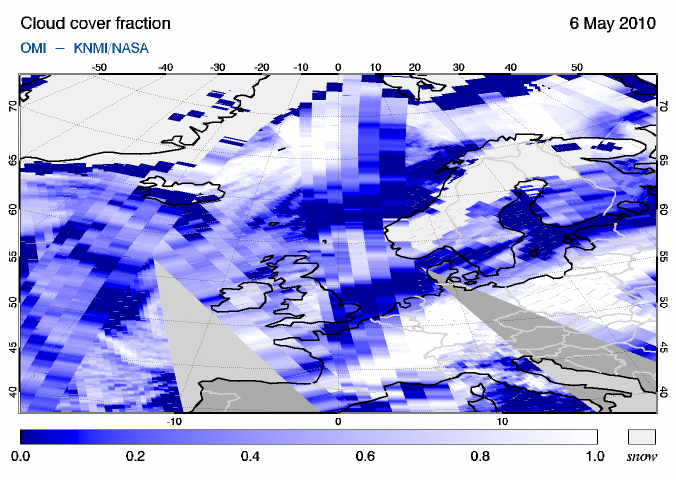

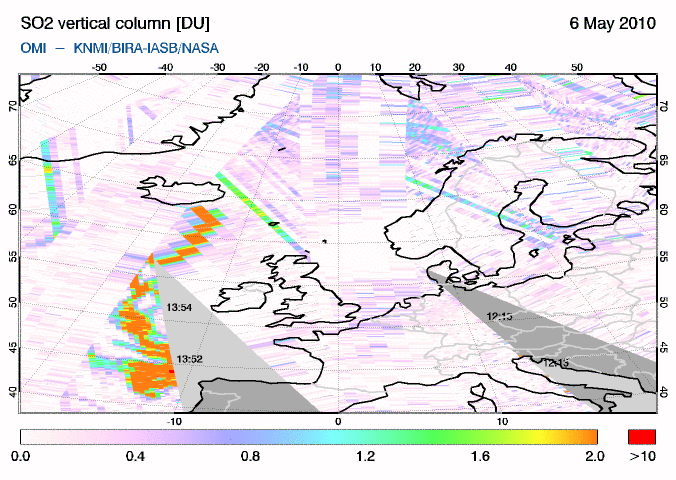

- direct : a)   ex:  omi_vcd20100506_106_lr.gif     omi_ccf20100506_106_lr.gif
time coverage : Aug 2004 - Oct 2017

notification of SO2 events
mode of alerts : email, with link to dedicated web page
alert levels : low (VCD > 1.5 DU)
alert generation : KNMI / BIRA-IASB
alert archive : http://sacs.aeronomie.be/alert/
time coverage : --

archive service of AI
data products : AI
data format : HDF-EOS at orbit coordinates
data generation : NASA / UMBC / NOAA
data analysis : KNMI
data storage : KNMI
data access : NRT data is available using the following registration: EOSDIS User Registration System.
data maps : VCD, CCF
map generation : KNMI
map storage : KNMI
map access - web : a) http://sacs.aeronomie.be/archive
- direct : a)   ex:  omi_vcd20100506_106_lr.gif
time coverage : Jul 2009 - Oct 2017



SO2 and Aerosol Flag data derived from IASI


archive service of SO2 Difference of Brightness Temperature event
data products : DBT
data format : bin files at orbit coordinates
      data generation : ULB
data analysis : ULB
data maps : DBT
map generation : BIRA-IASB / ULB
map storage : BIRA-IASB
map access - web : a) http://sacs.aeronomie.be/archive
- direct : a)   ex:  iasi_dbt20130506as_106_lr.gif     iasi_dbt20130506dc_106_lr.gif
time coverage : --

notification of SO2 events
mode of alerts : email, with link to dedicated web page
alert levels : low (VCD > 1.5 DU)
alert generation : BIRA-IASB / ULB
alert archive : http://sacs.aeronomie.be/alert/
time coverage : --

archive service of Aerosol/Ash Flag
data products : Aerosol/Ash flag
data products : ASH
data generation : ULB
data analysis : ULB
data storage : ULB / BIRA-IASB
data maps : ASH
map generation : BIRA-IASB / ULB
map storage : BIRA-IASB



SO2 and Aerosol Flag data derived from AIRS


archive service of SO2 Difference of Brightness Temperature event
data products : VCD
data format : hdf files at orbit coordinates
      data generation : NASA
data analysis : NASA/NILU/BIRA-IASB
data storage : BIRA-IASB
data access : NRT data is available using the following registration: EOSDIS User Registration System.
data maps : VCD
map generation : BIRA-IASB / NILU
map storage : BIRA-IASB
map access - web : a) http://sacs.aeronomie.be/archive
- direct : a)   ex:  airs_vcd20130506as_106_lr.gif   ex:  airs_vcd20130506dc_106_lr.gif
time coverage : Sep 2002 - Oct 2017

notification of SO2 events
mode of alerts : email, with link to dedicated web page
alert levels : low (VCD > 1.5 DU)
alert generation : BIRA-IASB / NILU
alert archive : http://sacs.aeronomie.be/alert/
time coverage : Sep 2002 - Oct 2017

archive service of Aerosol/Ash Flag
data products : Aerosol/Ash flag
data products : ASH
data generation : BIRA-IASB / ULB
data analysis : BIRA-IASB / ULB
data storage : BIRA-IASB / ULB
data maps : ASH
map generation : BIRA-IASB / ULB
map storage : BIRA-IASB

instrument
    data products
near-real-time processing off-line data archive
[start = first data day]
nrt data archive operational
SCIAMACHY
    SO2 column
    Aerosol index

Jan 2004 - Apr 2012
Jan 2009 - Apr 2012

Sep 2006
Jul 2010

Jan 2004 - Apr 2012
Jan 2009 - Apr 2012
[start:  02 Aug. 2002]
OMI
    SO2 column
    Aerosol index

Aug 2004 - Oct 2017
Jul 2009 - Oct 2017

Jul 2009
Jul 2009

Aug 2004 - Oct 2017
Jul 2009 - Oct 2017
[start:  17 Aug. 2004]
GOME-2
    SO2 column
    Aerosol index

Jan 2007 - Oct 2017
Jun 2010 - Oct 2017

Feb 2008
Jun 2010

Jan 2007 - Oct 2017
Jun 2010 - Oct 2017
[start:  04 Jan. 2007]
IASI
    SO2 dbt
    Aerosol/Ash flag

Oct 2007 - Oct 2017
Oct 2007 - Oct 2017

Aug 2010
        --

Oct 2007 - Oct 2017
Oct 2007 - Oct 2017
[start: 2007]
AIRS
    SO2 dbt
    Aerosol/Ash flag

Sep 2002 - Oct 2017
Sep 2002 - Oct 2017

Sep 2010
        --

Sep 2002 - Oct 2017
Sep 2002 - Oct 2017
[start: 2007]

Remarks: an entry "--" means that that data set is not yet available
